1962 - 1964, All Markets

Earth wiring

Colour Fuse Components
black none earth
black/green green wiper switch
wiper motor 'normal' speed
blue none main lighting switch
blue/red none dipswitch
headlamp dipped beams
blue/white none dipswitch
headlamp flasher switch
'main beam' warning light
headlamp main beams
brown none solenoid
ignition switch
main lighting switch
headlamp flasher switch
cigar lighter
dynamo control box
brown/green none dynamo
control box
brown/yellow none dynamo
control box
ignition warning light
green green fusebox
brake light switch
indicator flasher
heater fan switch
wiper motor
fuel gauge
green/black green fuel gauge
fuel tank sender
green/brown green heater fan switch
heater fan
green/purple green brake light switch
brake lights
green/red green indicator-signal switch
left-side flashers
green/white green indicator-signal switch
right-side flashers
light-green/blue green indicator-signal switch
right-side flasher repeater
light-green/brown green indicator flasher
indicator switch
light-green/purple green indicator flasher
indicator repeater lamps
light-green/yellow green indicator switch
left indicator repeater lamp
purple purple fusebox
purple/black purple horn switch
red none main lighting switch
rear/parking lights
panel lights dimmer
map light switch
red/green none map light switch
map light
red/white none panel lights dimmer
panel lights
white none ignition switch
ignition warning light
coil SW
fuel pump
overdrive relay
overdrive manual switch
white/black none coil CB
white/red none ignition switch
starter solenoid
yellow none overdrive manual switch
overdrive relay
overdrive vacuum switch
yellow/purple none overdrive gearbox switch
overdrive solenoid
yellow/red none overdrive vacuum switch
overdrive relay
overdrive gearbox switch

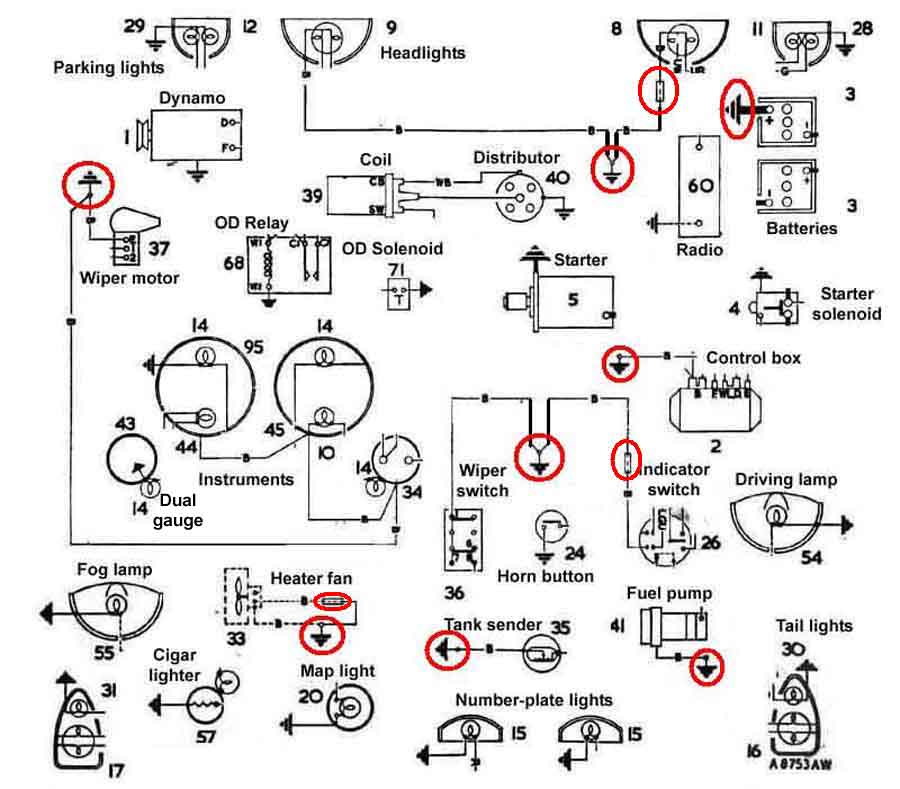

Earth wiring:

All earths wired to a body bolt or via bullet connectors are circled in red, plus the engine earth not shown. The remainder are picked up from the physical mounting of the component. Note the dual gauge is shown with a local earth instead of a wired earth as for the other instruments, this is probably an error:
