Jacking Points and the Fixed Cross-member

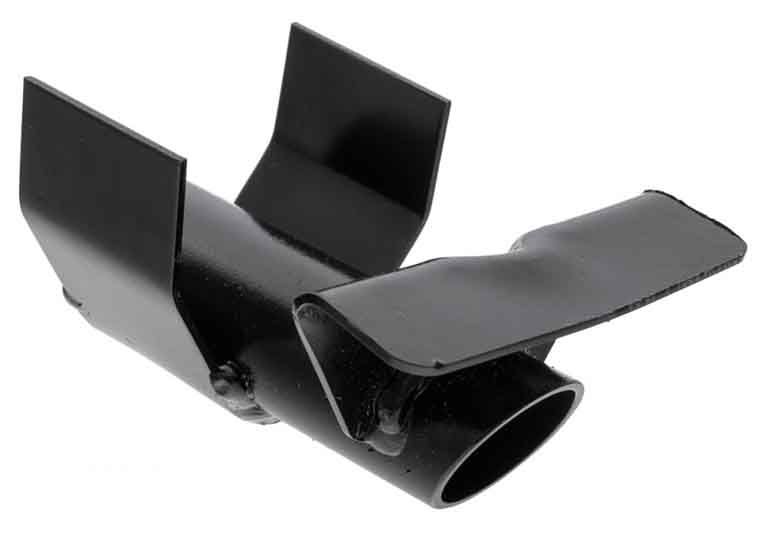

Jacking-point HZA492:

Outrigger repair section MB31:

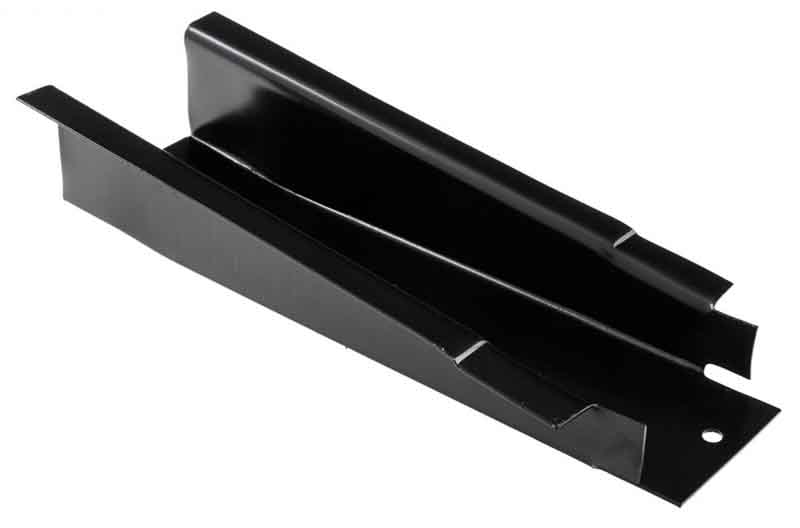

Half-repair section HZA464H:

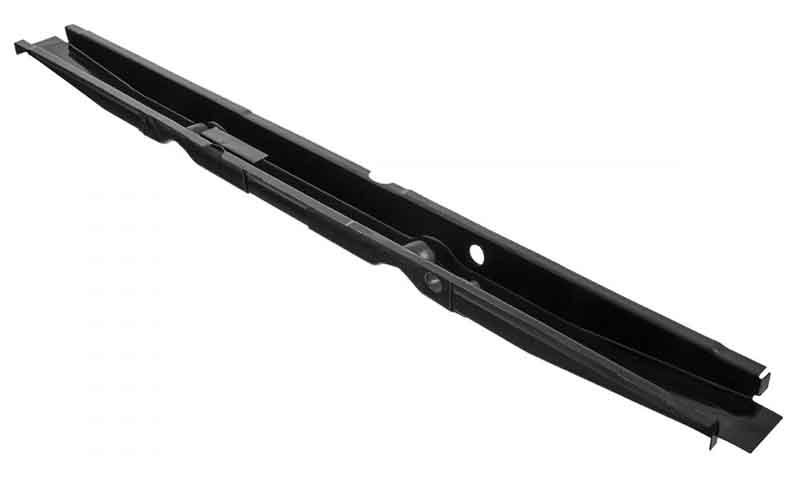

Full cross-member HZA464:

All above images from Moss Europe.

Unfortunately I have lost who sent me the following pictures.

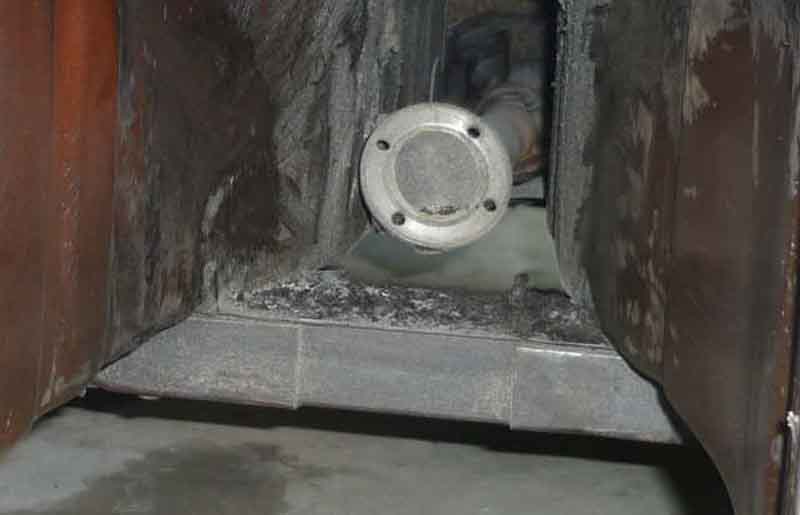

Looking towards the prop-shaft, showing the 'lid' on the crossmember:

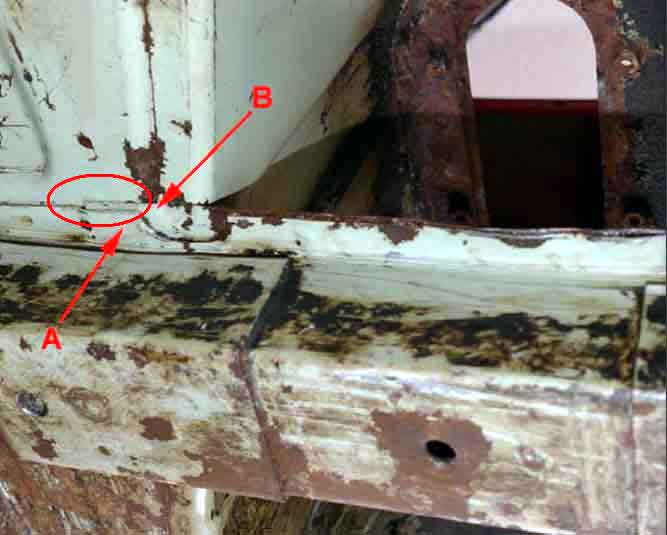

'A' is the cross-member and 'B' is the 'lid' that extends a short way under the flanges of the tunnel and the floor panels, the end of the overlap is circled:
