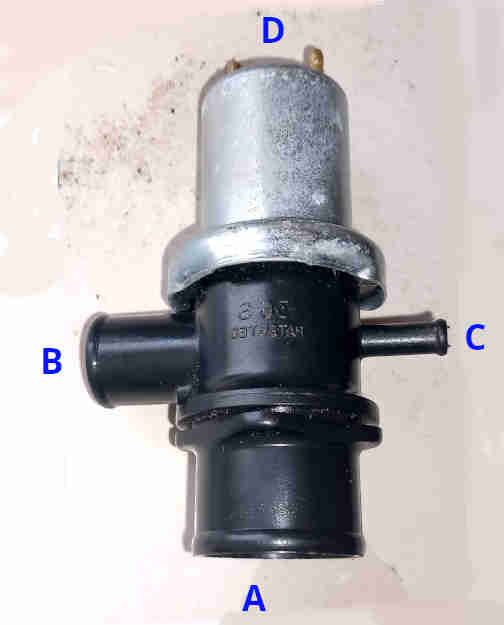

North American Anti-runon Valve

North American Anti-runon Valve
Hover over a wire to confirm the colour
Anti-runon Valve Schematic

12v is only connected through the fuse to the valve when the ignition is off. The oil pressure switch only connects a ground to the other side of the valve when the engine is running and generating oil pressure. So with a running engine the valve only operates when the ignition is switched off. When the engine stops and the oil pressure dies away the valve releases again.
